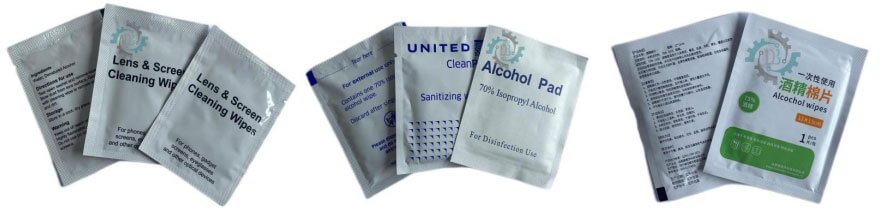

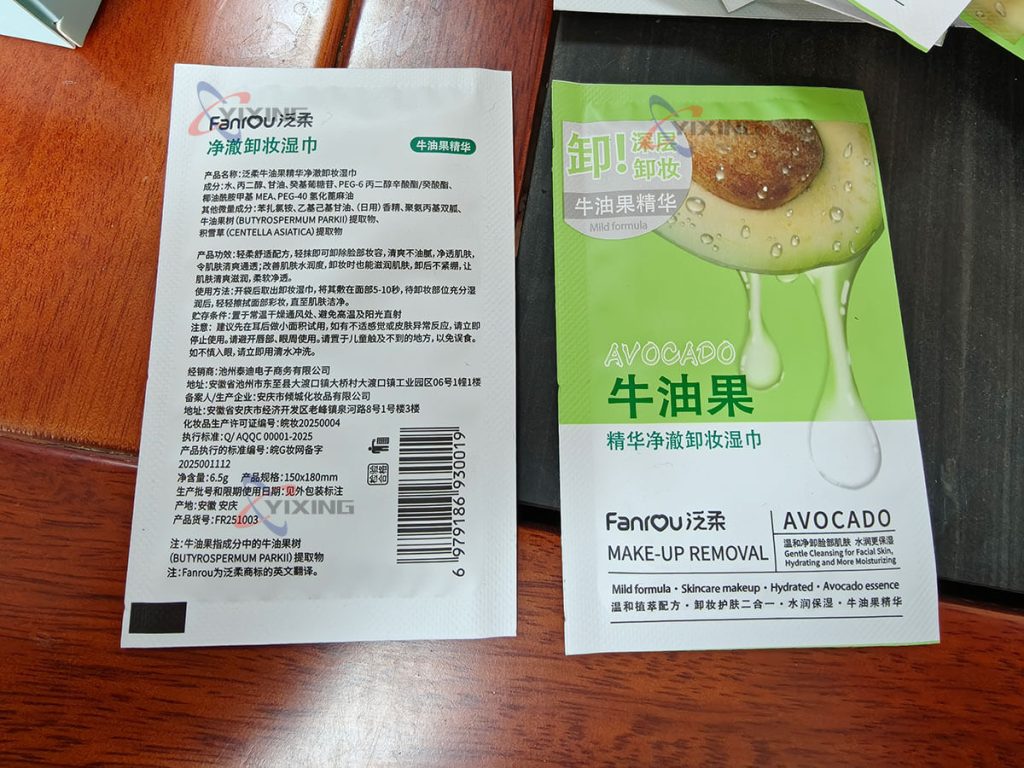

Sample
Technical Specifications
| Speed | 50–80 cuts/min (Output = Cutting Speed × No. of Lanes) |
| Bag Size Range | Customizable upon request |

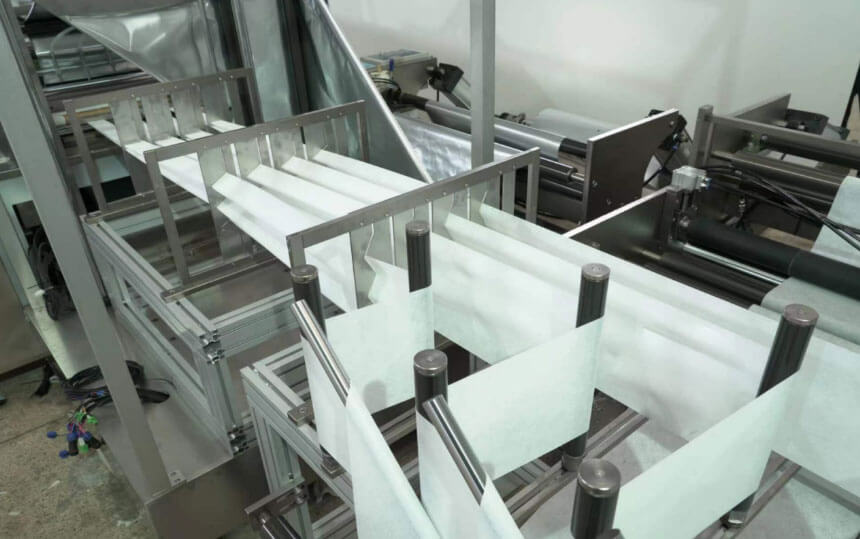

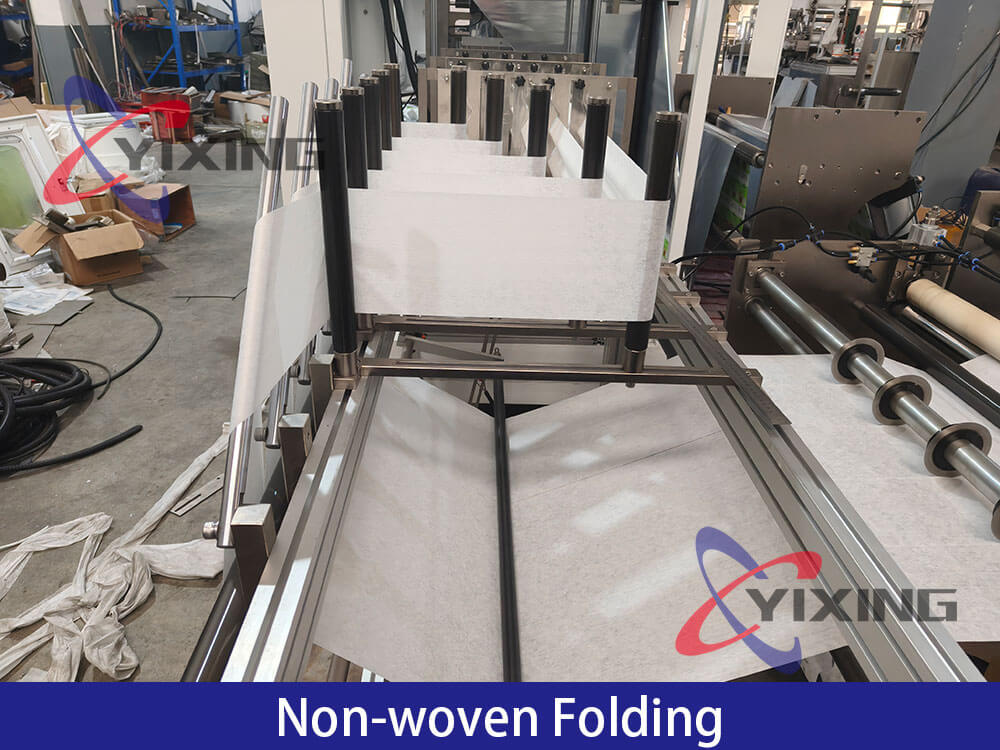

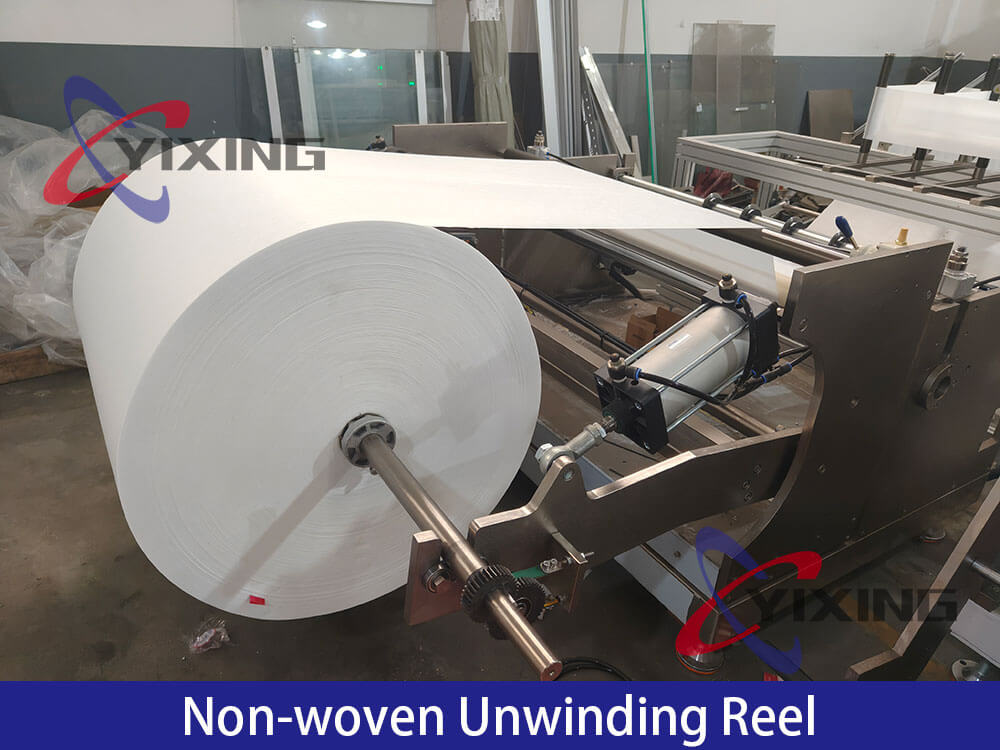

| Non-woven Folding Type | Max. 10 vertical folds; horizontal half-fold / 3-fold / 4-fold |

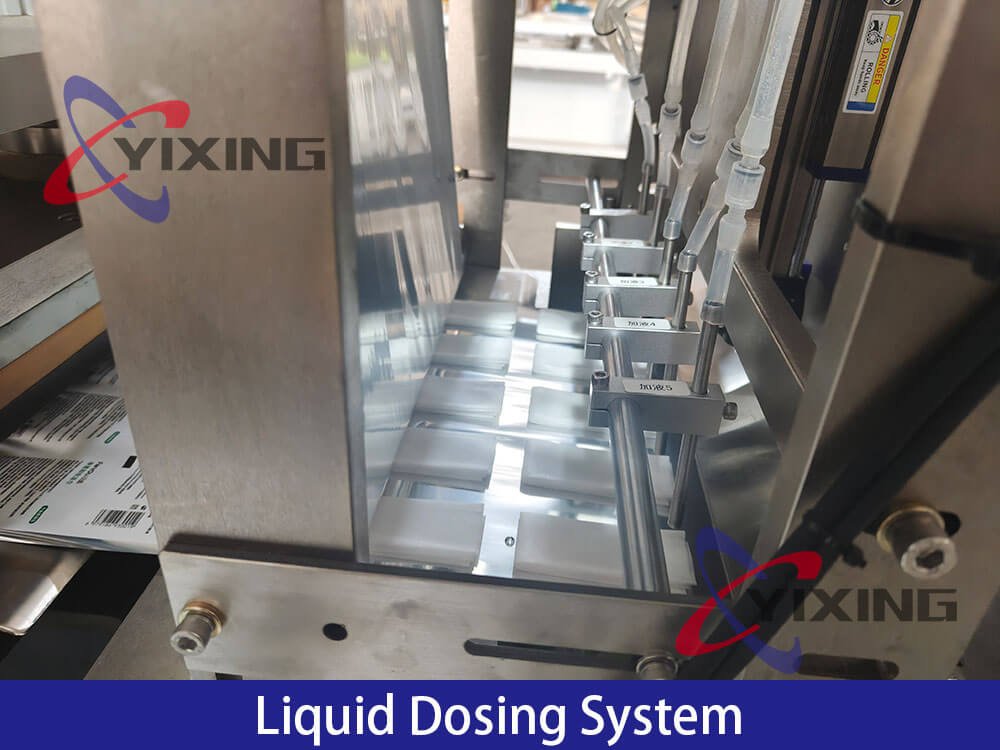

| Filling Volume | 0-10ml |

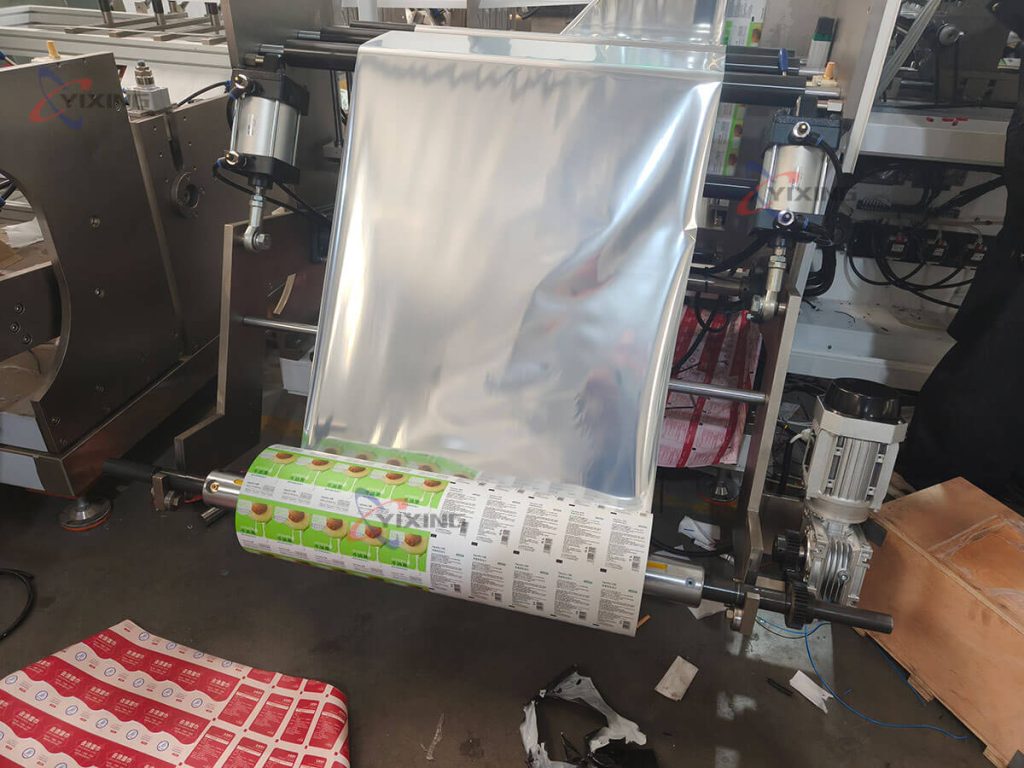

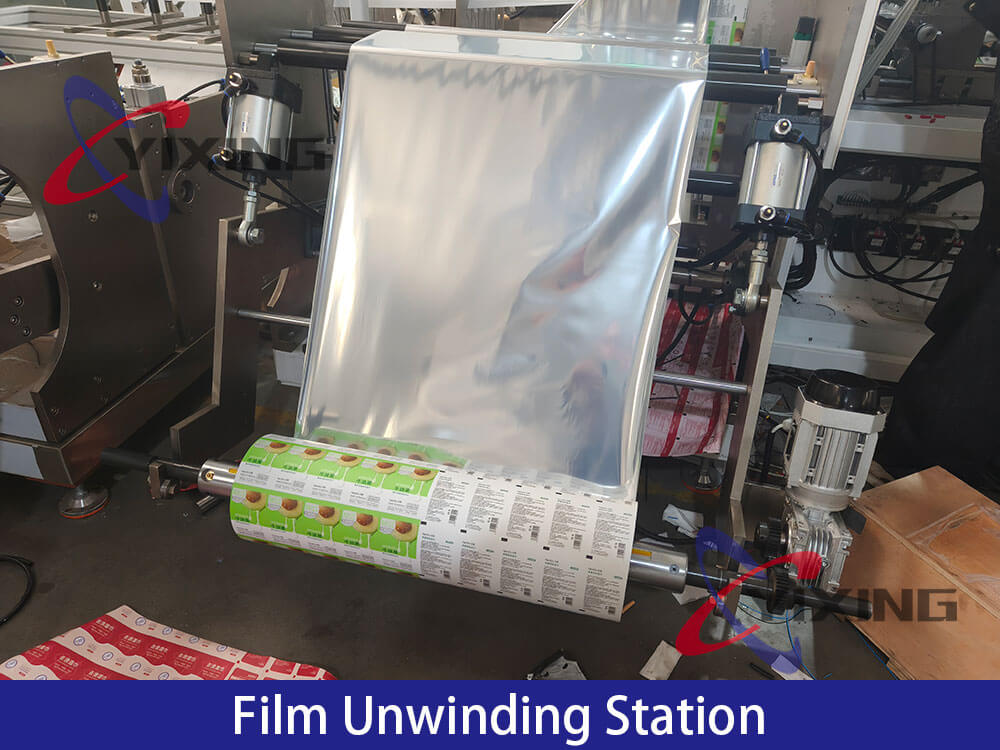

| Max. Film Roll Width | 800 mm |
| Packaging Materials | Laminated films, aluminized films, paper-aluminum, paper-plastic, and other composite materials |
| Total Power | 220V / 380V, 50Hz, 15 kW |
| Air Consumption & Pressure | ≥0.1m³/min , 0.6–1.0 MPa |
| Machine Weight | 4400kg |
| Overall Dimension (L×W×H) | 6800×2750×1650mm |
