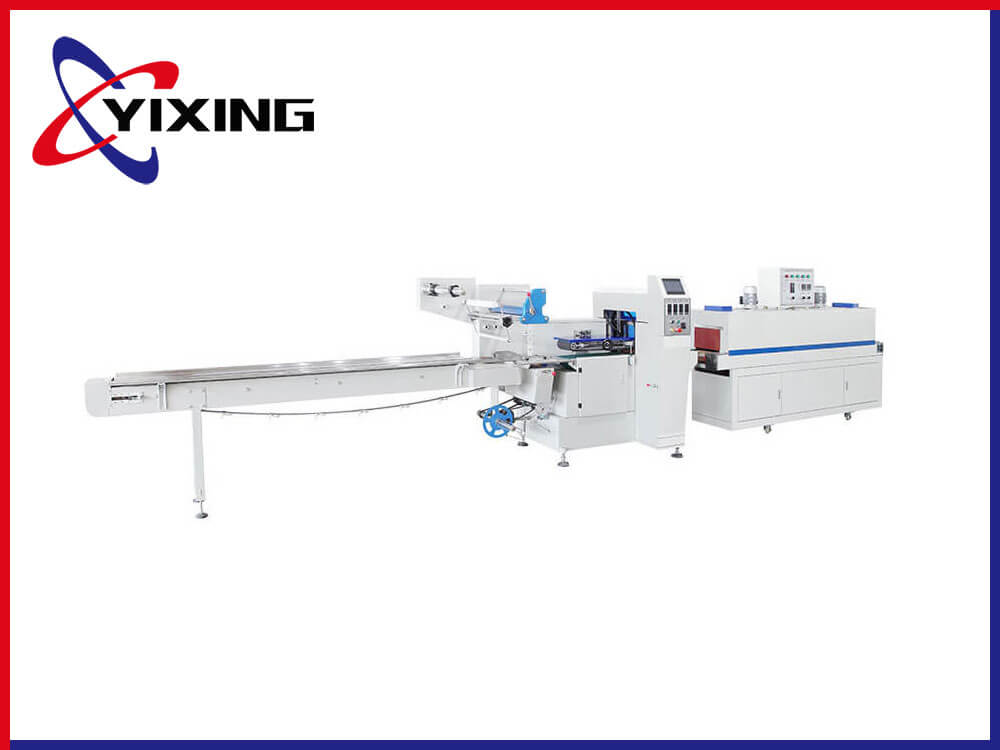

• Box Motion Type Shrink Wrap Machine

Box Motion Type Shrink Wrap Machine

Ideal shrink wrap solution for cosmetics, food boxes, carton, bottle, cups, trays, etc. Box Motion, with Max speed of 175Bags/Min.

Key Features

  • Powered by three independent servo motors
  • Features a reciprocating transverse sealing jaw design, superior hermetic performance
  • Auto retract for misplaced goods
Request a Quote

Contact our sales team for pricing, customisation, and delivery details.

Machine Video

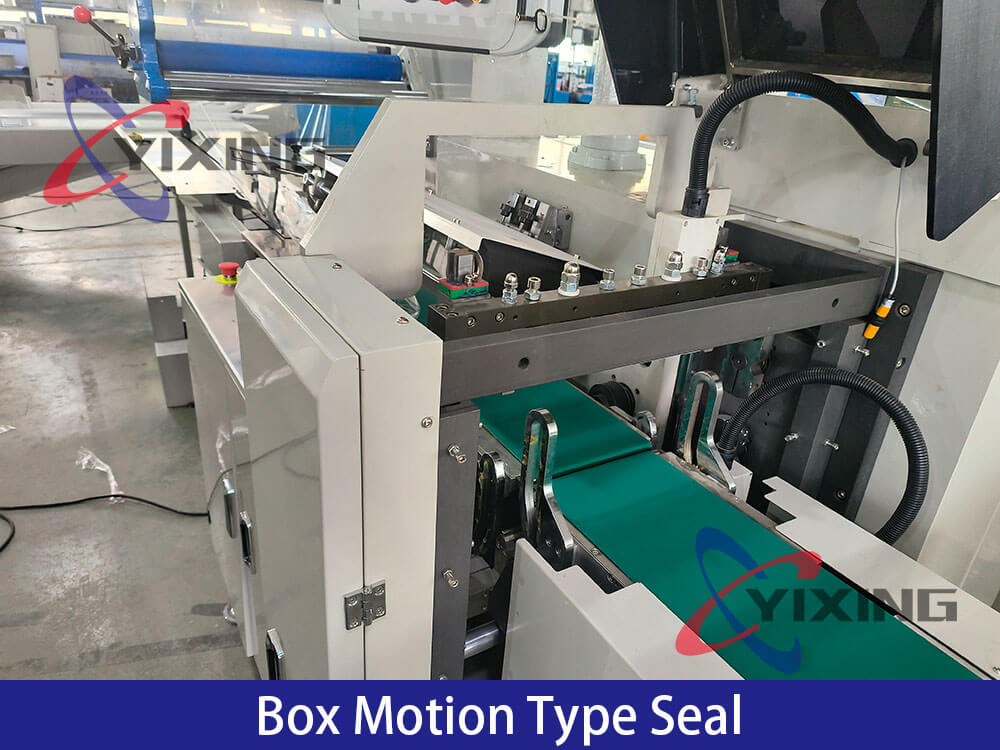

Box Motion Type Shrink Wrap Machine Box Motion Type Seal
Box Motion Type Seal

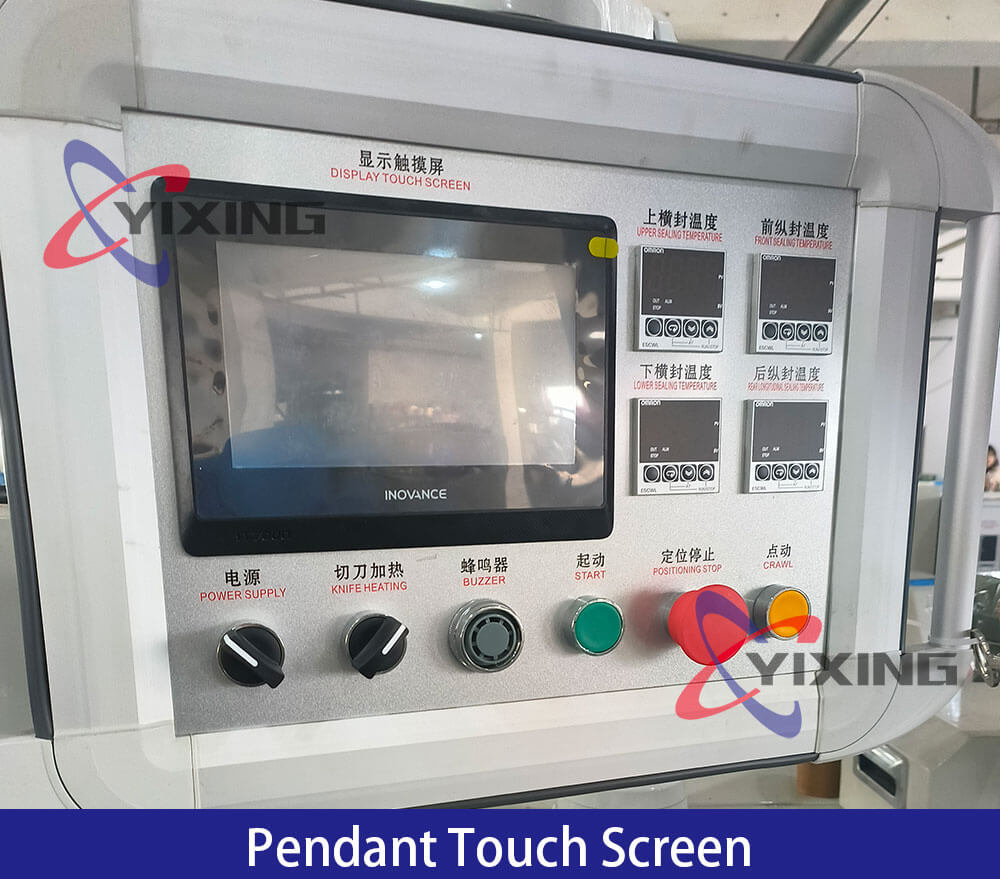

Box Motion Type Shrink Wrap Machine Pendant Touch Screen
Pendant Touch Screen

Technical Specifications

Model500720
Max Film Width≤590mm≤720mm
Bag Length(L)80mm-450mm120mm-600mm
Product Width(W)20mm-200mm20mm-250mm
Product Height(H)5mm-90mm30mm-145mm
Packing Speed30-175bags/min30-130bags/min
Film TypePOF FilmPOF Film
Rated PowerPackaging Machine: 4.75KWShrink Tunnel: 13.5KW
Power SupplyPackaging Machine: 220V, 50HZ/60HZShrink Tunnel: 380V, 50HZ/60HZ
Machine DimensionsPackaging Machine: 4900x1130x1500mmShrink Tunnel: 2600x600x1750mm
Total WeightPackaging Machine: 1200kgShrink Tunnel: 380kg
